Description
avenger rennrad Avenger Shuttle Complete BikeAvenger Shuttle Complete Bike The Avenger Shuttle complete bike is an aero carbon road frameset built for real world speed and stability. Its Toray T800 T1000 UD layup and fully internal routing create a clean, stiff front end with precise handling on fast group rides, hard training, or race day. Modern standardsflat mount discs, 12100 12142 thru axles, and 140 160 mm rotor compatibilitydeliver confident braking and tracking, while clearance up to

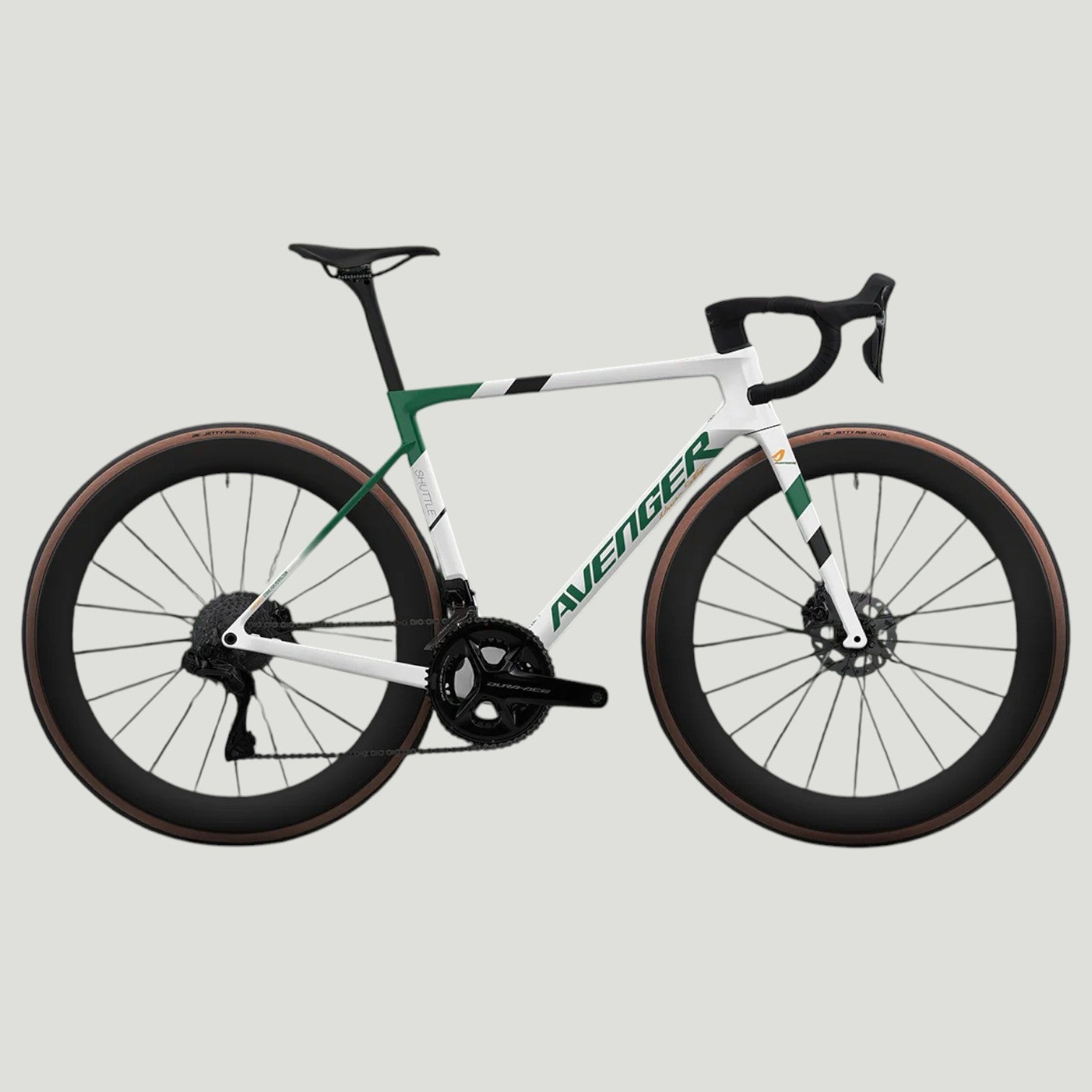

Avenger Shuttle Complete Bike
The Avenger Shuttle complete bike is an aero carbon road frameset built for real-world speed and stability. Its Toray T800/T1000 UD layup and fully-internal routing create a clean, stiff front end with precise handling on fast group rides, hard training, or race day. Modern standards—flat-mount discs, 12×100/12×142 thru-axles, and 140/160 mm rotor compatibility—deliver confident braking and tracking, while clearance up to 700×32C keeps it quick without beating you up on rough pavement. Claimed weights come in light for the category (frame 950 ± 40 g, fork 430 ± 15 g, normal version), and sizes from 50–58 cm make it easy to dial in fit and ride feel.
Modern standards throughout (threaded T47 BB, flat-mount discs, 12×100/12×142 thru-axles) pair with generous tire clearance for confident tracking and comfort on imperfect roads.
Why Riders Choose the Avenger Shuttle
- CFD-shaped aero tubes: reduced drag with predictable handling in crosswinds.
- Stiff where it matters: reinforced HT/DT/BB zones for crisp power transfer.
- Full internal front end: 52×52 mm headset compatible with integrated cockpits.
- Modern standards: T47 (68 mm) BB, flat-mount discs, 12×100 / 12×142.
- Real-world speed: clearance up to 700×32C (confirm exact spec from tech sheet).
- Fit range: five sizes (S–XL or 50–58; confirm final), dialed geometry.
- Kit contents: frame, fork, seatpost, headset, thru-axles (confirm package list).
Avenger Shuttle Complete Bike Specifications
Frame Details
- Type: Aero Full Carbon Disc Road Frame — Shuttle
- Finish: UD carbon finish
- Material: Toray T800 / T1000
- Weave: UD
- Tire Clearance: Max up to 700×32C
- Rear Axle: 142×12 mm
- Front Axle: 100×12 mm
- Rotor Diameter: 140 / 160 mm
- Frame Weight: 950 ± 40 g (Normal Version)
- Fork Weight: 430 ± 15 g (Normal Version)
- Headset: FSA NO.55R
- Available Sizes: 50 / 52 / 54 / 56 / 58 cm
Shimano 105 Di2 Build Specs
- Shift/brake levers: ST-R7170-R/L (423 g)
- Front derailleur: FD-R7150 (142 g)
- Rear derailleur: RD-R7150 (302 g)
- Crankset: FC-R7100 2×12 52-36T (754 g)
- Cassette: CS-R7101-12 11-34T (361 g)
- Chain: CN-M7100 (252 g)
- Front brake: BR-R7170 (123 g)
- Rear brake: BR-R7070-R (138 g)
- Battery: BT-DN300 (52 g)
- Charging cable: EW-EC300
- Rotors: SM-RT70 140 mm (121 g ×2)
- Bottom bracket: T47-B (86 g)
- Rims: UAM 50 mm clincher, 24/24 holes (480 g ×2)
- Hubs: UAM-12S disc (375 g)
- Spokes: Carbon fiber (4 g ×48)
- Spoke nipples: Black (0.2 g ×48)
- Tires: 700×28C (250 g ×2)
- Valve extensions: Black (2 g ×2)
- Handlebar tape: Black (24 g ×2)
- Bottle cages: Carbon (18 g ×2)
- Pedals: PD-R8000 (148 g ×2)
- Saddle: GUB 1150 (chrome-molybdenum steel) (230 g)
Shimano Ultegra Build Specs
- Shift/brake levers: ST-R8170-R/L (391 g)
- Front derailleur: FD-R8150 (110 g)
- Rear derailleur: RD-R8150 (262 g)
- Crankset: FC-R8100 2×11 52-36T (711 g)
- Cassette: CS-R8100-12 11-34T (345 g)
- Chain: CN-M8100 (252 g)
- Front brake: BR-R8170-F (146 g)
- Rear brake: BR-R8170-R (136 g)
- Rotors: SM-MT800 160 mm (108 g ×2)
- Bottom bracket: T47-B (86 g)
- Rims: UAM 50 mm clincher, 24/24 holes (480 g ×2)
- Hubs: UAM-XDR disc (375 g)
- Spokes: Carbon fiber (4 g ×48)
- Spoke nipples: Black (0.2 g ×48)
- Tires: 700×28C (250 g ×2)
- Valve extensions: Black (2 g ×2)
- Handlebar tape: Black (24 g ×2)
- Bottle cages: Carbon (18 g ×2)
- Pedals: PD-R8000 (148 g ×2)
- Saddle: GUB 1150 (chrome-molybdenum steel) (230 g)
Avenger Shuttle Frameset Geometry
| SIZE | S | SC | O | HS | HC | F | OT | WB | FC | RC | H | standover | Stack | Reach |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 447 | 73.5 | 520 | 95 | 71 | 368 | 45 | 972 | 593.9 | 410 | 69 | 721 | 502 | 367 |
| 520 | 467 | 73.5 | 528 | 110 | 72 | 368 | 45 | 973 | 593.9 | 410 | 69 | 738 | 520 | 371 |
| 540 | 493 | 73 | 551 | 134 | 73 | 368 | 45 | 982 | 582 | 410 | 69 | 763 | 543 | 381 |
| 560 | 515 | 73 | 563 | 151 | 73 | 368 | 45 | 994 | 593.9 | 410 | 69 | 780 | 559 | 390 |
| 580 | 546 | 73 | 580 | 185 | 73 | 368 | 45 | 1014 | 614 | 410 | 69 | 810 | 591 | 403 |
Avenger Shuttle Weights
| Frame weight (Normal Version) — with small parts | 50 cm | 52 cm | 54 cm | 56 cm | 58 cm |
|---|---|---|---|---|---|
| Mass | 930 ± 20 g | 935 ± 20 g | 947 ± 20 g | 966 ± 20 g | 993 ± 20 g |
| Component | Weight | Notes |
|---|---|---|
| Fork (Normal Version) | 430 ± 10 g | |
| Seatpost (350 mm) | 90 ± 10 g | w/o clamp parts (39 g) |
| Handlebar | 330 ± 10 g |
All weights from Avenger sheet. Tolerances shown as ±. “With small parts” includes hanger and seatpost clamp hardware.
Helpful Links
Compare Shuttle geometry to other bikes on
Geometry Geeks.
Browse compatible carbon wheelsets.
More Information
| BRAND | AVENGER |
|---|---|
| DISCIPLINE | ROAD |
