foot pedal throttle Genuine Variable Speed Foot Pedal Throttle for Razor Crazy Cart XL (V1– 1080 Riders

foot pedal throttle Genuine Variable Speed Foot Pedal Throttle for Razor Crazy Cart XL (V1– 1080 RidersThe foot pedal throttle is the primary control interface between the rider and the Crazy Cart XL's 500W motor. Unlike every other scooter and ride on in the Razor range which use hand operated throttles the Crazy Cart XL uses a car style foot pedal accelerator. Press lightly for a gentle creep; press fully for full power acceleration. The foot pedal design frees both hands to operate the drift bar, giving the rider complete, simultaneous control over

The foot pedal throttle is the primary control interface between the rider and the Crazy Cart XL's 500W motor. Unlike every other scooter and ride-on in the Razor range — which use hand-operated throttles — the Crazy Cart XL uses a car-style foot pedal accelerator. Press lightly for a gentle creep; press fully for full-power acceleration. The foot pedal design frees both hands to operate the drift bar, giving the rider complete, simultaneous control over both speed and direction — the combination that makes the Crazy Cart XL's adult-level drifting experience possible.

When the foot pedal throttle fails, the symptoms are immediate and unmistakeable: the cart refuses to accelerate despite a functioning battery and control module, responds only at full speed with no progressive control, or cuts out and requires the pedal to be released and re-pressed before it will operate again. In all of these cases, the throttle is the most likely cause — and this genuine replacement is the correct and complete solution.

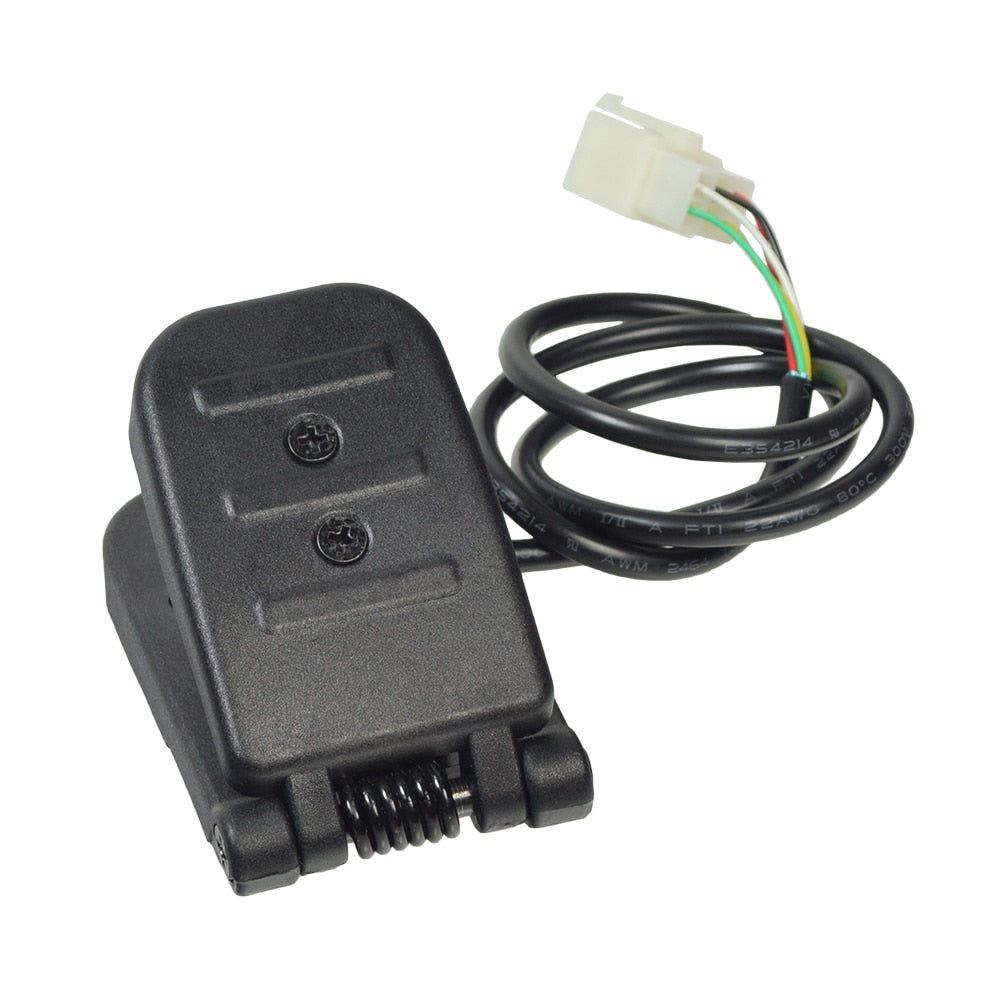

This is the genuine factory replacement foot pedal throttle for the Razor Crazy Cart XL (Version 1 and above), rated at 5W with variable speed control and supplied with the wiring harness connector pre-attached for a direct, plug-and-play installation

Variable Speed Control — The Full Spectrum of Throttle Response — The genuine foot pedal throttle delivers continuously variable power output across the full pedal travel, from the gentlest crawl to full-power acceleration. This progressive control is what makes the Crazy Cart XL manageable for riders of all experience levels and is the defining characteristic of the XL's driving experience. Generic replacements frequently deliver only on/off switching — full power or nothing — which makes the cart significantly harder to control and removes the nuance that makes drifting enjoyable. Important — this throttle is designed exclusively for the Crazy Cart XL. The standard Crazy Cart (V5+) uses a different foot pedal throttle (Part #W25143490043) with a different connector configuration. The two throttles are not interchangeable.
Car-Style Foot Pedal Design — Hands-Free Speed Control — The foot pedal design is not simply a stylistic choice — it is a functional necessity. With both hands on the drift bar, foot-operated speed control allows the rider to independently manage acceleration and steering simultaneously. A hand throttle would require releasing the drift bar to adjust speed, fundamentally compromising the XL's drift control system.5W Hall-Effect Sensor — Precise, Wear-Free Signal — The genuine throttle uses a Hall-effect magnetic sensor to convert pedal position into a precise electrical signal. Hall-effect sensors have no physical contact between the sensing element and the magnet, meaning there are no wear surfaces to degrade over time. This is why the genuine throttle delivers consistent, accurate throttle response throughout its service life — and why generic potentiometer-based alternatives become notchy and unreliable as they wear. Pre-Attached Wiring Harness — Direct Plug-and-Play Installation — The wiring harness connector is pre-attached to the throttle and matched exactly to the Crazy Cart XL's control module connector. No soldering, crimping, or wiring modification is required — the throttle connects directly to the existing harness in under five minutes. Genuine Factory Fit — Correct Pedal Geometry and Return Spring — As a genuine manufacturer part, the pedal travel, return spring tension, and mounting bracket dimensions are matched exactly to the Crazy Cart XL chassis. The correct return spring tension ensures the pedal returns to the zero-throttle position cleanly when released — acritical safety characteristic that generic alternatives frequently compromise

Razor Crazy Cart XL
Version 1 and above

Not compatible with the standard Crazy Cart (V5+/DLX): The standard Crazy Cart uses a different foot pedal throttle (Part #W25143490043) with a different connector configuration and pedal geometry. Fitting the XL throttle to a standard Crazy Cart will result in an incorrect connector fit and the cart will not function.Not compatible with the Crazy Cart Shift: The Crazy Cart Shift uses a hand throttle, not a foot pedal. This part is not applicable to the Shift range.How to identify your version: Locate the barcode sticker on your battery cover or the bottom of the frame. The 7th and 8th digits of the product ID code indicate your version number (e.g., ""01"" = Version 1)
